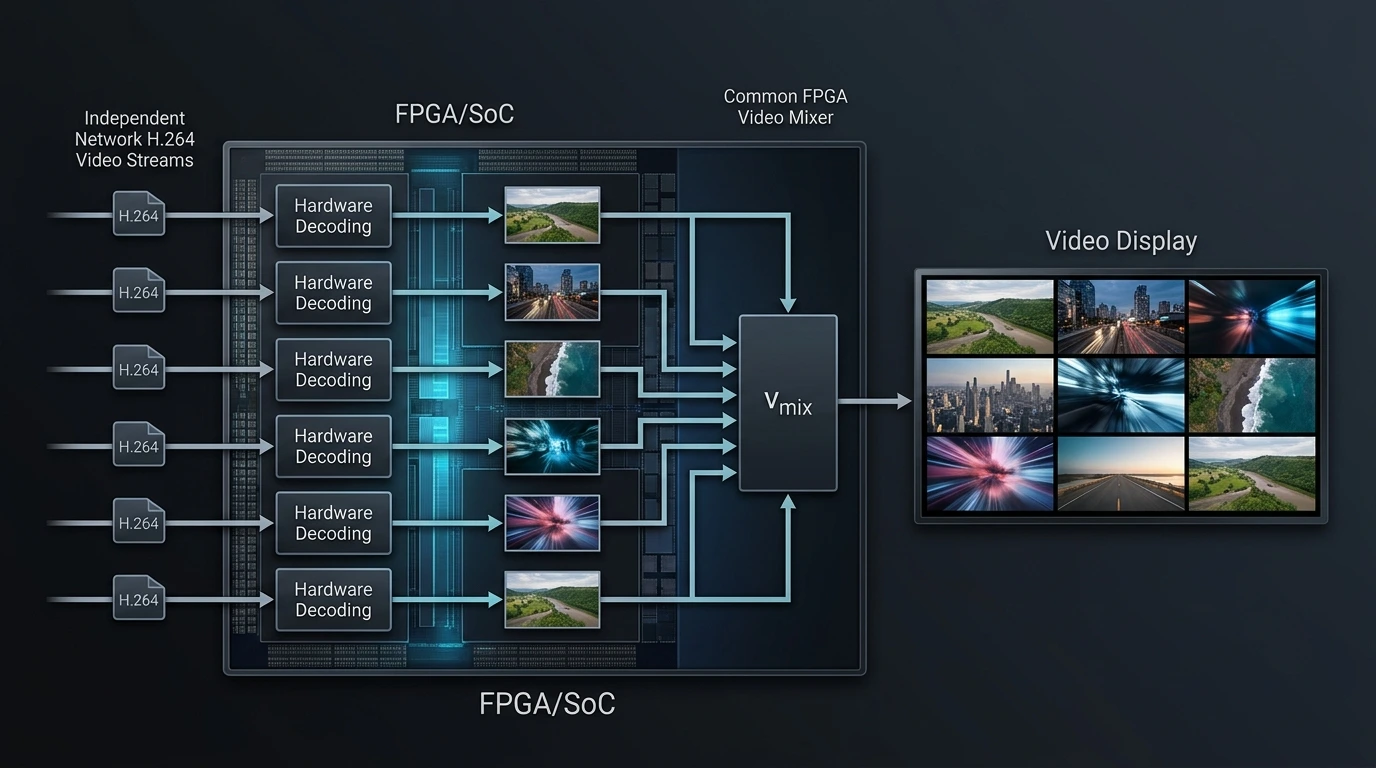

Designing Low-Latency FPGA Video Pipelines
In real-time video systems, latency is not determined by one block. It emerges from the complete path: acquisition, buffering, format conversion, processing, memory movement and output.
The Engineering Problem
Latency is an architectural property
A video pipeline can contain fast individual components and still produce disappointing end-to-end latency. Line buffers, frame buffers, clock-domain crossings, memory transactions and processing stages all introduce delay. The first engineering task is therefore to define where latency is measured and then account for every stage between those two points.
-
Pipeline depth
Minimize unnecessary stages while preserving timing closure and throughput. -
Buffering strategy
Use the smallest buffering model that satisfies rate matching, burst behavior and recovery requirements. -
Data movement
Keep transfers predictable and avoid unnecessary round trips through external memory. -
Clock domains
Make crossings explicit and measurable rather than allowing hidden synchronization delays to accumulate.
Practical Design
Measure the complete pipeline
For deterministic systems, throughput alone is not enough. Measure latency at defined interfaces, test under realistic traffic and distinguish fixed processing delay from queueing or buffering delay. This makes optimization a system-engineering exercise rather than a sequence of isolated micro-optimizations.
On FPGA-based video platforms, the boundary between hardware and software is especially important. A technically efficient accelerator can still be hidden behind driver scheduling, memory management or synchronization decisions. The most useful optimization is often the one that removes an unnecessary boundary altogether.
Related ETROYL Capability
From architecture to deployed video processing
ETROYL works across FPGA design, embedded systems and real-time video processing, allowing latency to be considered at system level rather than inside a single IP block.
